Technical Specifications — RVMF20

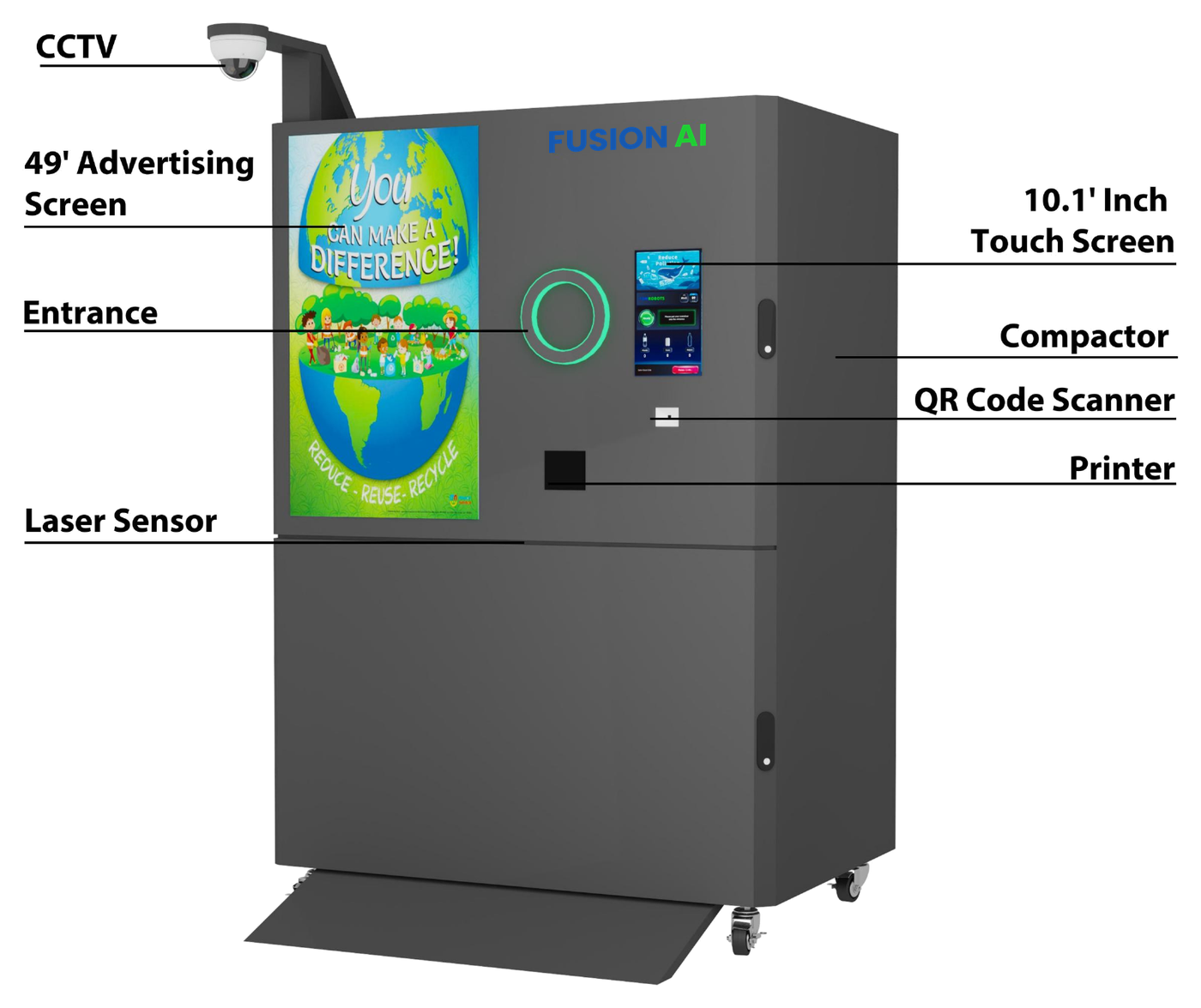

• ModelRVMF20

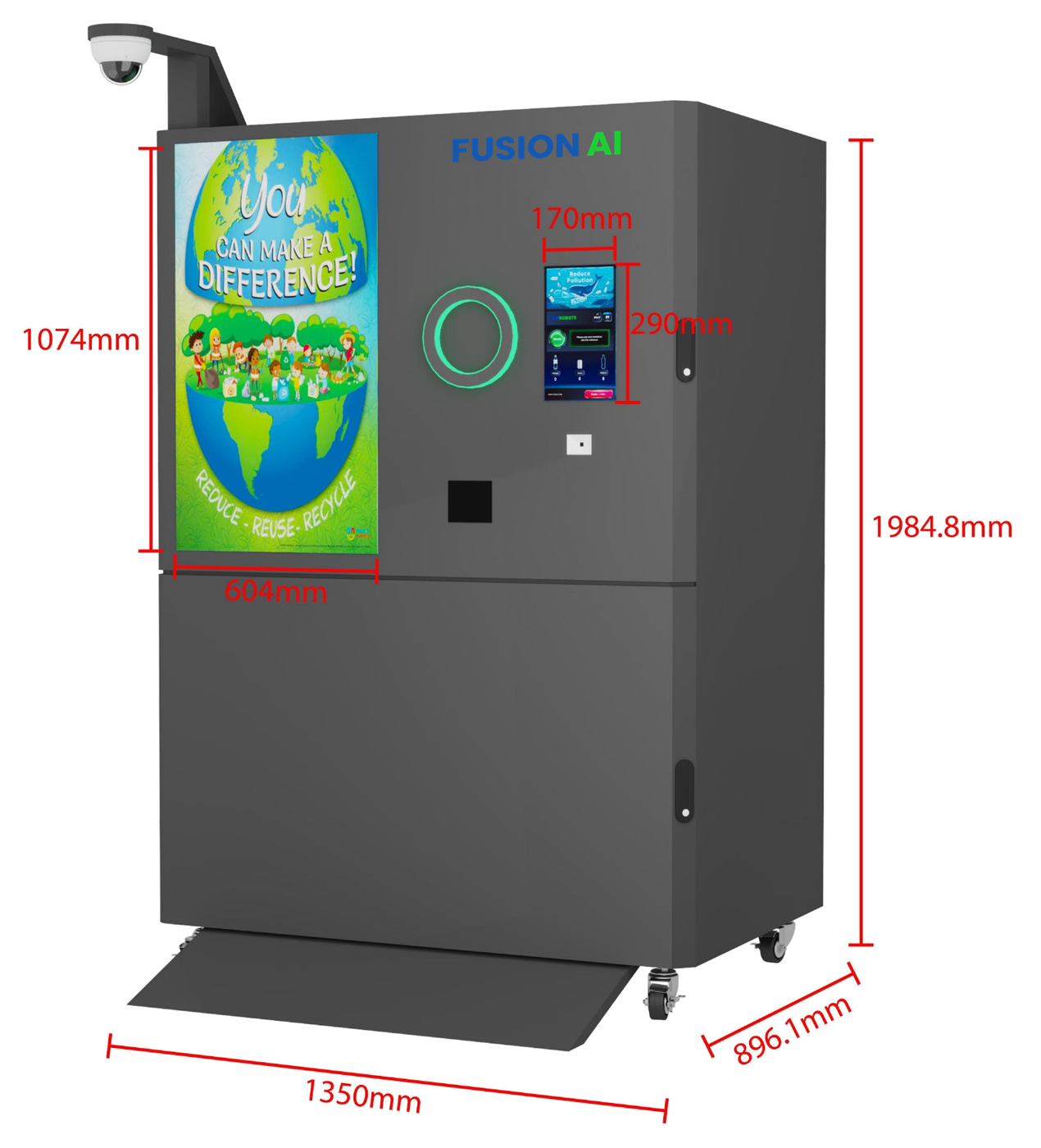

• Dimensions (W × D × H)1350 × 896.1 × 1984.8 mm
• MobilityLockable bottom wheels for easy transport and relocation
• Advertising display49″ LED display with embedded AI for dynamic branded content
• User touch screen10.1″ touch screen
• User identificationQR code scanning
• PrinterIntegrated receipt printer
• AI recognitionInstant recognition with dimension verification for different container types
• Barcode reading360° barcode reading module
• Material handlingSingle entrance for bottles & cans; on-board compactor and sorter
• SensorsMetal sensor; weight sensor (rejects bottles with liquid); bin-full sensor with auto-alert
• Connectivity5G network connectivity
• PositioningGPS global satellite positioning
• Security (optional)CCTV camera; optional external camera with 2 TB hard disk
• ThroughputUp to 50–55 containers per minute
• Container sizes50–130 mm × 80–380 mm (diameter × height)
• Storage per binPET bottles: up to 405 × 0.50 L (compacted); Cans: up to 735 × 0.33 L (compacted)
• Power supply100–240 V, 50/60 Hz, 10 A, single phase
• Power consumptionStandby: 70 W; Operating (max): 800 W
• Operating environmentIndoor use only; −10 to +40 °C; humidity max 90% (non-condensing)
• Noise level< 65 dB
• CertificationCE Standard Certified
• Warranty3-year warranty
• Parts availabilityGuaranteed parts for 8+ years

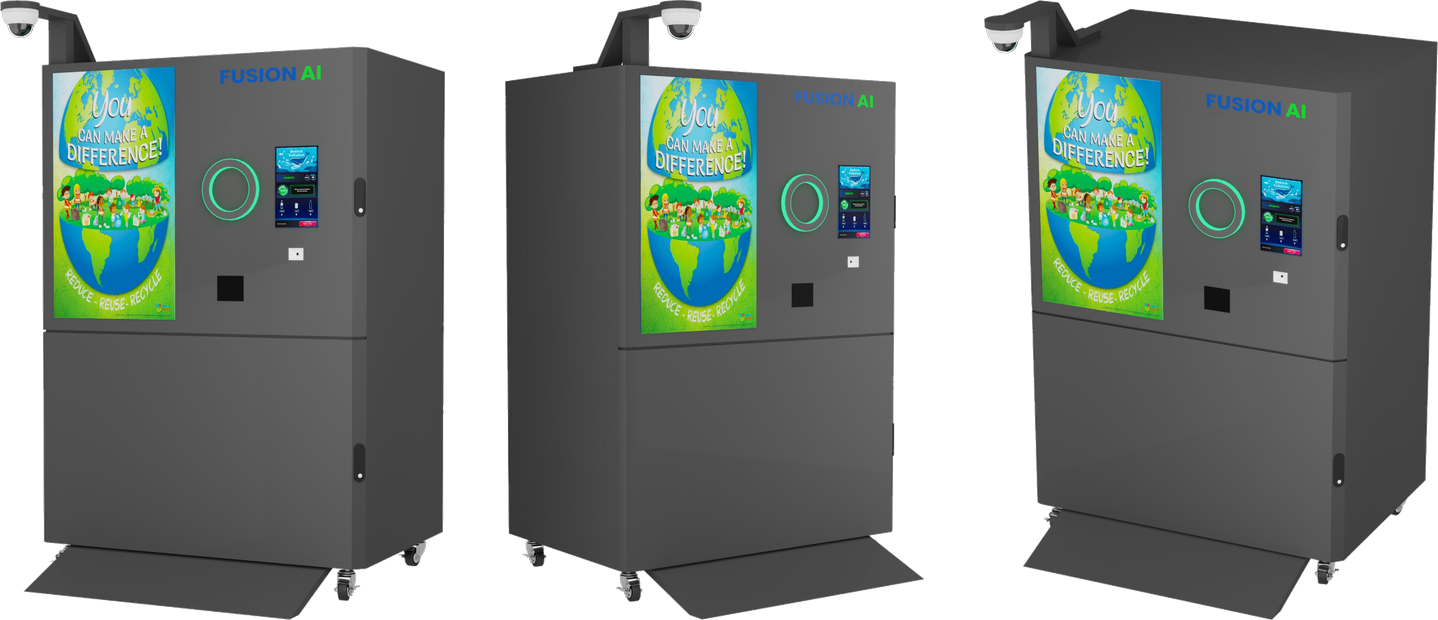

RVMF20 — additional views

RVM X20

The RVM X20 is the model currently deployed and supported in the field across supermarket branches in Qatar. Fusion AI operates and maintains this installed base — and the five years of insight gained from it is exactly what shaped the next-generation RVMF20.

• Proven in daily retail use across multiple branches
• Fully supported by Fusion AI — servicing, spare parts, and repairs
• Bottle and can collection with customer receipt issuing
• Upgrade path available to the RVMF20

Ask about servicing or upgrading
